All Living Things Luxury Chinchilla Pet Home Assembly Instructions

 If you have purchased an All Living Things Luxury Chinchilla Pet Home from PetsMart and have misplaced the assembly instructions this post should help get back on track. If you have had your cage for a while and need to replace shelves, ramps or.... we can help critter-cages.com carries parts for this cage. If you do not see a part you need listed drop us an email at orderdesk@critter-cages.com and we will check on availability.  We also stock lots of toys, treats and equipment for all your critters.

Replacement Top Panel for ALT Luxury Chinchilla Pet Home
Replacement Side Panel for ALT Luxury Chinchilla Pet Home
Replacement Shelf for ALT Luxury Chinchilla Home
Replacement Ramp for ALT Luxury Chinchilla Pet Home
Replacement Pan for ALT Luxury Chinchilla Pet Home
Replacement Casters for Luxury Chinchilla Pet Home

Putting your Luxury Chinchilla Pet Home Together

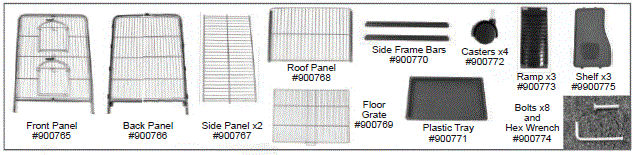

Before you start assembling your new All Living Things Luxury Chinchilla Pet Home it is a good idea to lay out all the parts and make sure they are all there.  The graphic below will help you check.  Assembly is easy if you follow the instructions, the only tool needed to assemble this habitat is the Hex Wrench included in the Hardware Pack. If you find there are parts missing contact the manufacturer's customer service department (Ware Mfg.) at 800 295-2243.

  Step 1

Using the Hex Wrench attach the back panel to the roof panel with 2 bolts and lay flat.
**Do not tighten bolts fully until all panels are in place**

Step 2

Slide the Side Panels into the slots on the Side Bars on the Back Panel. make sure the center wire on the Side Panel is secure in the hole in the center of the Roof Panel support bar. repeat for the other Side Panel.

Step 3

Attach the side frame bars to the back panel with a bolt. make sure the smooth side is facing out. Again make sure the center wire on the side panel is secure in the hole in the center on the side frame bars. Repeat for the other side panel.

Step 4

Attach the front panel and tighten all 8 bolts. Attach all 4 casters by inserting the metal end into the plastic fittings in the bottom of the legs.

Step 5

1) Slide the floor grate, with the handle out in the upper channel of the frame bars, and the plastic pan into the lower channel.
2) Attach the plastic ramps to the bottom side of each of the plastic shelves by snapping them into the plastic clips on the bottom side of the shelves.

Step 6
1) Place the assembled shelves and ramps in the cage through the door. Attach the lower shelf and ramp to the 2nd wire up from the bottom on the right side of the cage.
2) Then attach the middle shelf to the 3rd wire up from the bottom on the left side with the end of the ramp resting on the lower shelf.
3) Lastly, attach the upper shelf to the 4th wire up from the bottom on the right side with the ramp resting on the middle shelf.
