If you have purchased a Living Room Series Indoor Hutch 4 Level (Model 01904) by Ware Mfg. and have misplaced the assembly instructions this post should help get back on track. If you have had your 4 Level Indoor Hutch for a while and you need replacement parts we can help: critter-cages.com carries parts for this item. If you do not see a part you need listed give us a call 310 832-9981 M-F 10 am to 6 pm Pacific Time or drop us an email at orderdesk@critter-cages.com and we will check on availability. We also stock lots of toys, treats and equipment for all your Furry Friends.
Parts
Replacement Caster Wheels #900051
Parts list changes frequently. Please visit our website, call or email us using the information above if what you need isn't currently listed.
Putting your Indoor Hutch Together

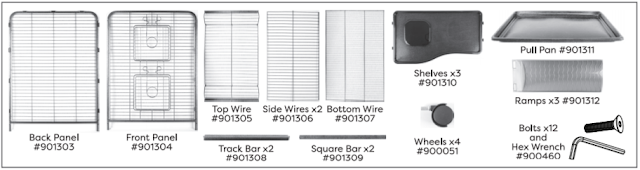

Before you start assembling your new Living Room Series Indoor Hutch, it is a good idea to lay out all the parts and make sure they are all there. The graphic below will help you check. Assembly is easy, just follow the instructions, its a Snap. If you find there are parts missing contact the manufacturer's customer service department at 800 295-2243.
Step 1
Attach the side bars to the front and back panels, using 2 bolts in each corner. The track bars should be attached below the bottom edge of the front and back panels, and the square bars should be attached above the bottom edge with the holes facing up.
Step 2
Slide the two side wire pieces down into place between the notches of the front and back panels. Then snap the top wire piece into place by pulling slightly on one of the panels and sliding the top wire into the notches.
Step 3
Secure the top wire with a bolt in each corner
Step 4
Lay the cage down on its side and attach each of the four wheels to one of the legs at the base of the cage.
Step 5
Slide the bottom wire piece in from the side of the cage, using the tracks on the front and back panels directly between the two side bars from step 1. Then slide the pull pan onto the bottom tracks from the front of the cage.
Step 6
Attach the plastic ramps to the bottom of the plastic shelves by snapping them into the clips at the bottom of the shelves.
Step 7
Position the assembled ramps on the wire of the cage and snap them into place on alternating sides of the cage.
Assembly Complete!
Your Living Room Series Indoor Hutch is now complete!
