Backyard Charm Free Range Hutch (14053) by Ware Mfg. Assembly Instructions

If you have purchased a Backyard Charm Free Range Hutch (Model 14053) by Ware Mfg. and have misplaced the assembly instructions this post should help get back on track. If you have had your Free Range Hutch for a while and you need replacement parts we can help: critter-cages.com carries parts for this item. If you do not see a part you need listed give us a call 310 832-9981 M-F 10 am to 6 pm Pacific Time or drop us an email at orderdesk@critter-cages.com and we will check on availability.  We also stock lots of toys, treats and equipment for all your Furry Friends.

Parts list changes frequently. Please visit our website, call or email us using the information above if what you need isn't currently listed.

Putting your Free Range Hutch Together

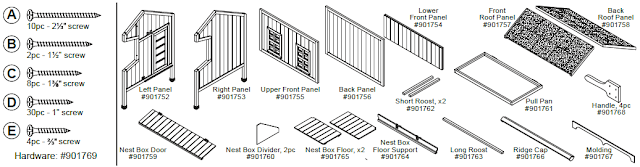

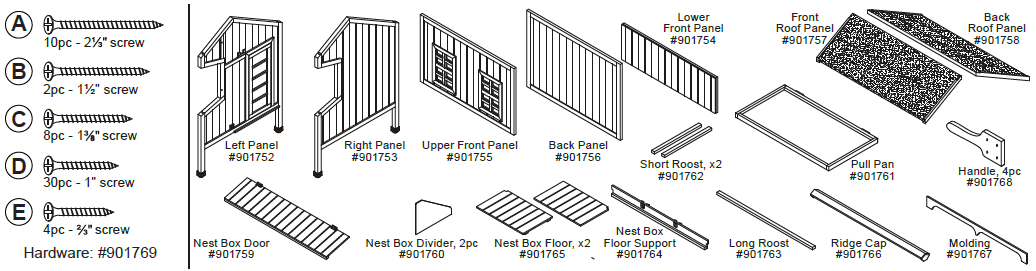

Before you start assembling your new Free Range Hutch, it is a good idea to lay out all the parts and make sure they are all there.  The graphic below will help you check.  Assembly is easy, just follow the instructions, its a Snap. If you find there are parts missing contact the manufacturer's customer service department at 800 295-2243.

Step 1

Connect the Right and Left Panels to the Back Panel and the Upper and Lower Front Panels using 10 - 2 1/3" Screws (A). Secure top of Upper Front panel to the sides using 2 - 1 1/2" Screws (B).

Step 2

Lower the Nest Box Floor Support into the front of the hutch and slide in place in the notches on the inside of the Side Panels.

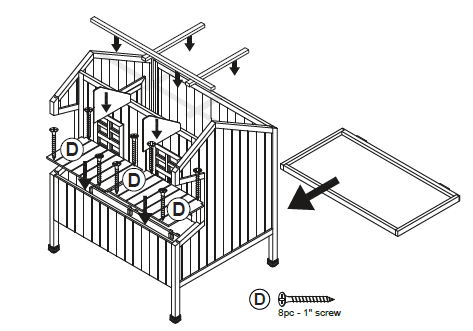

Step 3

Place the Nest Box Floor Panels into the Hutch and attach with 8 - 1" screws (D). Slide the nest Box Dividers in place in the nesting area in the front of the hutch. Slide the Pull Pan into the hutch. Lower the 2 short and 1 large Roost into the hutch.

Step 4

Position the Rooftop in place and attach with 8 - 1 3/8" screws (C). Attach the molding to the front using 2 - 1" screws. Place the Ridge Cap on top of the roof and attach with 4 - 1" screws (D). Attach Handles to the front of the hutch using 4 - 1" screws (D). Connect Nest Box Door to top of nest box area of the hutch using 4 - 2/3" screws (E) to the pre-attached hinges on the door.

Care Tip

To protect the wood on your hutch you need to re-apply the protective stain finish at least 1x each year. Use a safe and non-toxic water based stain (available at your local paint or hardware center). Keep hutch in a safe area away from high winds and extreme temperatures.
