If you have purchased a Premium Plus Chick-N-House by Ware Mfg. ,
from us or others and can't find your instructions or
you would like to see how easily it goes together before you buy. This
House is a great value priced Coop for a small flock of up to 5 average sized Hens. Optional add-ons for this Coop include the Premium Plus Chick-N-Pen and the Premium Plus Universal Chick-N-Nest Box Just keep
reading as we lay out how to put your Evergreen Hutch together. If you are
actually looking for replacement parts for this Hutch, we may have them available at Critter-Cages.com
Replacement Back Panel
Replacement Roof Panel
Replacement Root Bar
Replacement Roof Supports
To Keep your hutch in tip top shape we suggest that you re-stain all the wood surfaces every year using a safe non-toxic water based stain (available at your local hardware store).
Always place you hutch in a sheltered area protected from temperature extremes and high winds.
If you would like to print these instructions out in a PDF format please click here.
Make sure you have all the parts as laid out below:
Attach the front and back panels to the side panels using 10 of the 3-1/4" Bolts and Nuts.
After completing the above step place the 3 floor boards inside the assembled walls, then insert the three Roosting Bars into the slots provided on the inside
Attach Roof Panel to the top of the of the outside of the back panel.
Use two of the 1-1/4" Screws (B) from the outside and 3 of the 1" Screws (C) in the 3 middle holes.
Attach the two Roof Supports (hinges) using four of the 5/8" Screws (D) for each side, into the inside of the Roof and side Panels
Replacement Back Panel
Replacement Roof Panel
Replacement Root Bar
Replacement Roof Supports
To Keep your hutch in tip top shape we suggest that you re-stain all the wood surfaces every year using a safe non-toxic water based stain (available at your local hardware store).
Always place you hutch in a sheltered area protected from temperature extremes and high winds.
Assembling your Premium Plus Chick-N-House
First, you will need a Phillips Screwdriver (power driver makes the job much faster), you may also want to have another person to help hold the parts in place while you assemble. The beauty of this product is you only need one tool to put it all together, a Phillips Screwdriver.If you would like to print these instructions out in a PDF format please click here.

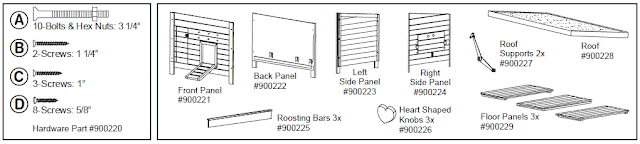

Make sure you have all the parts as laid out below:
Step 1
Attach the front and back panels to the side panels using 10 of the 3-1/4" Bolts and Nuts.
Step 2
After completing the above step place the 3 floor boards inside the assembled walls, then insert the three Roosting Bars into the slots provided on the inside

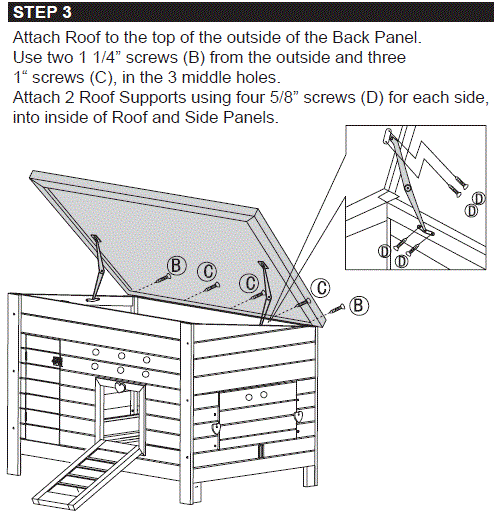

Step 3
Attach Roof Panel to the top of the of the outside of the back panel.
Use two of the 1-1/4" Screws (B) from the outside and 3 of the 1" Screws (C) in the 3 middle holes.
Attach the two Roof Supports (hinges) using four of the 5/8" Screws (D) for each side, into the inside of the Roof and side Panels

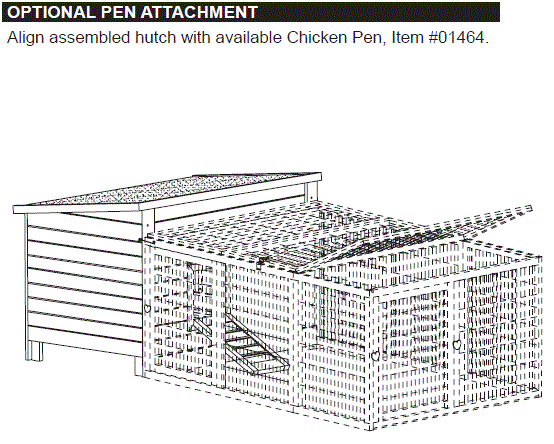

Optional Chick-N-Pen
Chick-N-Pen is available, click here
Other Small Critter, Chicken, and Poultry Products
If you are looking for other things for your Fury Friends, make sure you check out our website at http://critter-cages.com . We offer a large selection of cages, welded wire and supplies for you furry, four legged and feathered Critters. Whether you are looking for chicken runs, feeders or even chicken wire, take a look at our large selection of Poultry and other products for your Critters.
